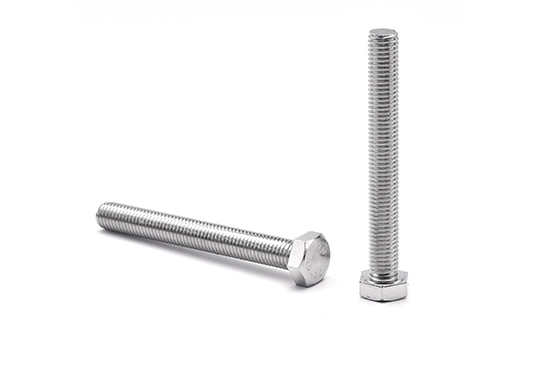

304 Hexagonal Screw

Name: 304 Hexagonal Screw
Brand: Shenzhen Xintegu Hardware Co.,Ltd.

The 304 Hexagonal Screw is a versatile and essential fastener made from 304 stainless steel, renowned for its corrosion resistance and strength. This durable screw is designed to withstand harsh environments, making it ideal for outdoor and marine applications where exposure to moisture is a concern. The hexagonal head allows for easy tightening and removal with standard wrenches or sockets, providing a reliable and secure grip that resists slippage during installation. Perfect for construction, automotive, and industrial applications, the 304 Hexagonal Screw ensures a robust and durable connection, maintaining its integrity over long periods and in adverse conditions.

Get a Quote 

304 Hexagonal Screw Specialty

Stainless steel hex bolts (e.g., Grades 304, 316) offer excellent corrosion resistance but generally have lower tensile strength compared to high-strength steel grades. They are used in environments prone to corrosion, such as marine or chemical processing applications. Selecting the appropriate hex bolt grade ensures optimal performance based on the required strength and environmental conditions.

Specifications of 304 Hexagonal Screw

Thread size (d)
P	Pitch
a	Maximum
c	Minimum
	Maximum
d_a	Minimum
d_w	Class A	Minimum
	Class B	Minimum
e	Class A	Minimum
	Class B	Minimum
k	Nominal diameter d
	Class A	Maximum
		Maximum
	Class B	Maximum
		Maximum
k₁	Minimum
r	Minimum
s	Maximum value = nominal
	Class A	Minimum
	Class B	Minimum
Thousand pieces of steel weigh ≈ kg

Thread size (d)
P	Pitch
a	Maximum
c	Minimum
	Maximum
d_a	Minimum
d_w	Class A	Minimum
	Class B	Minimum
e	Class A	Minimum
	Class B	Minimum
k	Nominal diameter d
	Class A	Maximum
		Maximum
	Class B	Maximum
		Maximum
k₁	Minimum
r	Minimum
s	Maximum value = nominal
	Class A	Minimum
	Class B	Minimum
Thousand pieces of steel weigh ≈ kg

M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16
0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2
1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	3	3.75	4.5	5.25	6	6
0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2
0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8
2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7
2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5
-	-	-	-	-	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22
3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75
-	-	-	-	-	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17
1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10
0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82
1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18
-	-	-	-	-	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71
-	-	-	-	-	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29
0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8
0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6
3.2	4	5	5.5	6	7	8	10	11	13	17	19	22	24
3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67
-	-	-	-	-	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16
-	-	-	-	-	-	-	-	-	-	-	-	-	-

(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
7.5	7.5	7.5	9	9	10.5	10.5	12	12	13.5	13.5	15	15
0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6
25.3	28.2	30	33.6	-	-	-	-	-	-	-	-	-
24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9	59.9	64.7	69.4	74.2
30.14	33.53	35.72	39.98	-	-	-	-	-	-	-	-	-
29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25
11.5	12.5	14	15	17	18.7	21	22.5	25	26	28	30	33
11.28	12.28	13.78	14.78	-	-	-	-	-	-	-	-	-
11.72	12.72	14.22	15.22	-	-	-	-	-	-	-	-	-
11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5
11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5
7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2	17.9	19.3	20.9	22.8
0.6	0.8	0.8	0.8	1	1	1	1	1	1.2	1.2	1.6	1.6
27	30	32	36	41	46	50	55	60	65	70	75	80
26.67	29.67	31.61	35.38	-	-	-	-	-	-	-	-	-
26.15	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1
-	-	-	-	-	-	-	-	-	-	-	-	-
①, This standard specifies the requirements for hexagon head screws from M1.6 to M52, where the maximum size of product grade A is M24 and the length does not exceed 10d or 150mm; if the size is larger than M24 or the length exceeds 10d or 150mm, it is a product grade B bolt. ②, When the bolt size is not larger than M4, the end is allowed to be unchamfered

304 Hexagonal Screw

304 Hexagonal Screw Specialty

Specifications of 304 Hexagonal Screw

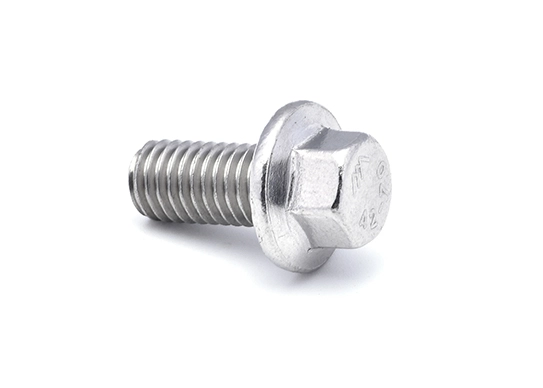

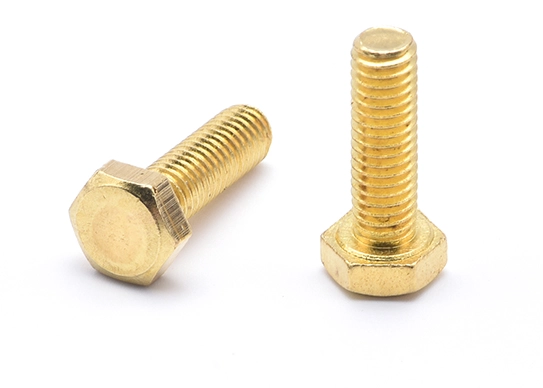

Related Hex Bolts
