hexagonal flange nut

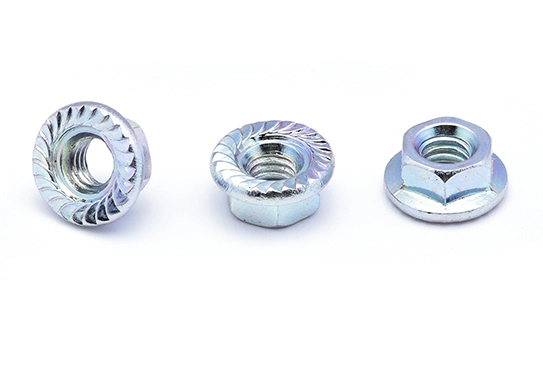

Environmentally Friendly Trivalent Color Hexagonal Flange Nut

The Environmentally Friendly Trivalent Color Hexagonal Flange Nut represents a significant advancement in fastening technology, combining robust functionality with ecological responsibility. This nut is treated with a trivalent chromate finish that provides excellent corrosion resistance without the environmental and health hazards associated with hexavalent chromium finishes. The integrated flange offers a broader bearing surface, which distributes the load evenly and eliminates the need for an additional washer.

Get a Quote

Specifications of Environmentally Friendly Trivalent Color Hexagonal Flange Nut

Thread size (d)

PPitchCoarse teeth
Fine teeth 1
Fine teeth 2
cMinimum value
daMinimum value
Maximum value
dcMaximum value
dwMinimum value
eMinimum value
mMaximum value
Minimum value
mwMinimum value
sMaximum value = nominal
Minimum value
rMaximum value



M5M6M8M10M12M14M16M20
0.811.251.51.75222.5
//11.251.51.51.51.5
///-1-1.25///
11.11.21.51.82.12.43
5681012141620
5.756.758.7510.81315.117.321.6
11.814.217.921.82629.934.542.8
9.812.215.819.623.827.631.939.9
8.7911.0514.3816.6420.0323.3626.7532.95
5681012141620
4.75.77.69.611.613.315.318.9
2.23.14.55.56.77.8911.1
810131518212430
7.789.7812.7314.7317.7320.6723.6729.67
0.30.360.480.60.720.880.961.2

①, Material:

a) Steel, strength grade (material): 8,10,12 Standard DIN ISO 898-2, DIN 267-23 (current draft)

b) Stainless steel, strength grade (material): A2-70 Standard DIN 267-11

c) Other materials or grades are selected by the manufacturer


Products
Contact Us And Get Your Standard/Customized Fasteners At Xintegu
Xintegu
Phone:
+86-0769-87561578
Aaron: +86-18129983931
Max: +86-18922922459
E-mail:

sales@szxintegu.com

support@szxintegu.com

engineer@szxintegu.com

consultant@szxintegu.com

aaron18129983931@gmail.com

Add:
First floor, No. 9 Fengming Road, Fengdeling, Fenggang Town, Dongguan City, Guangdong Province, China.
CONTACT
Xintegu provides wide ranges of custom non-standard fasteners and standard fasteners that covers your requirements.

Related Hex Nut

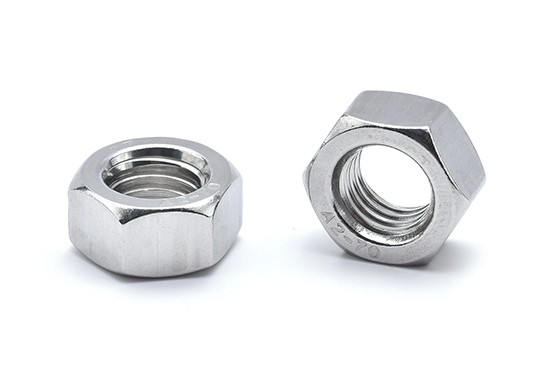

304 Hex Nut
304 Hex Nut
Thin Hexagonal Copper Nut
Thin Hexagonal Copper Nut

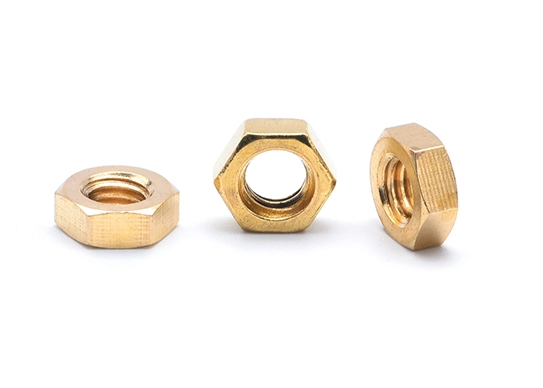

Brass Hex Nut
