Double‑stack self‑locking washer: a core long‑term anti‑loosening component for high‑vibration industrial scenarios

In the assembly system of modern industrial equipment, bolted connections represent the most fundamental and widely‑used fastening method. Fasteners are indispensable for securing components ranging from parts of precision mechanical equipment to large‑scale installations such as wind‑power facilities, rail transit equipment, mining machinery and engineering machinery. Nevertheless, operating conditions including vibration, impact loads, alternating temperature differences and frequent equipment start‑stop cycles have long caused ordinary bolted connections to suffer from loosening, slipping and falling‑off. In mild cases, this gives rise to abnormal equipment noise, accuracy deviations and accelerated component wear, raising routine operation and maintenance costs. In severe cases, it may result in equipment shutdown, component detachment and even work‑safety accidents. Among numerous anti‑loosening solutions, double‑stack self‑locking washers feature core strengths including purely mechanical self‑locking capability, stable performance, broad compatibility and long service life. They are gradually replacing conventional anti‑loosening measures and have become the preferred anti‑loosening components for industrial scenarios with heavy loads and intense vibration, building a core safeguard for the safety of equipment connections.

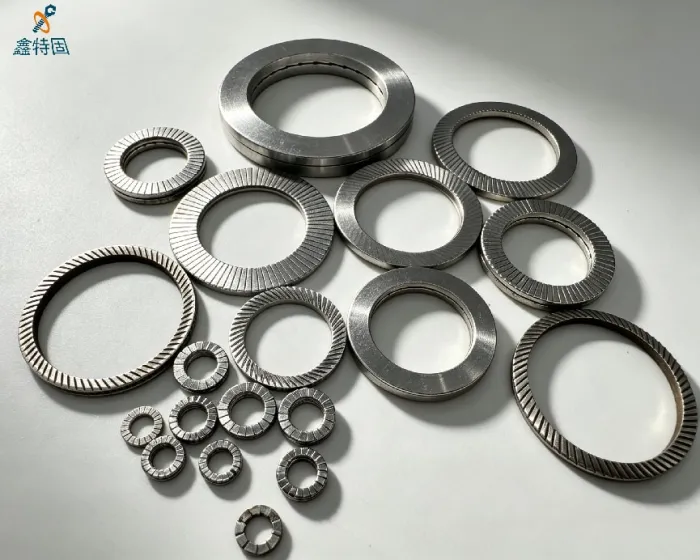

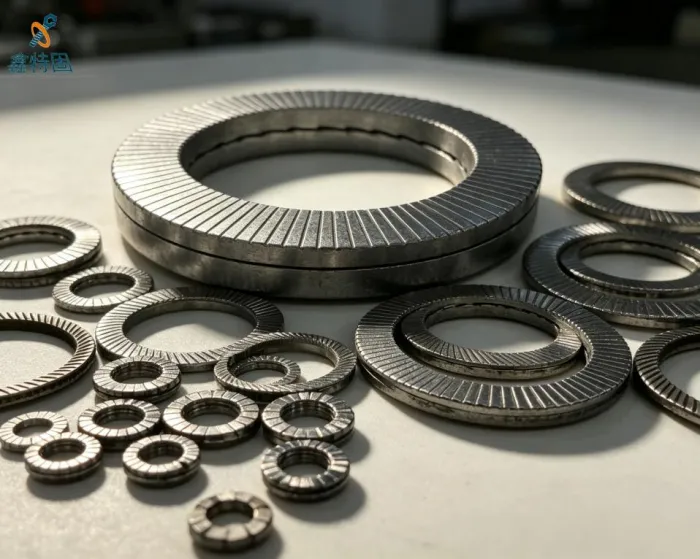

The double-layer self-locking washer is a specialized anti-loosening fastener designed in accordance with the DIN 25201 standard. It features a paired, dual-plate precision construction, distinguishing it from the single-plate design used in conventional flat washers or spring washers. Each washer is manufactured with high precision; its outer surface is equipped with radial anti-slip teeth, while its inner surface incorporates a special wedge-shaped inclined surface. When installed in pairs, the inner wedge-shaped surfaces must be precisely aligned, and the outer toothed surfaces must tightly engage with the contact surfaces of the nut, bolt head, and workpiece, thereby forming a comprehensive mechanical locking mechanism. This anti-loosening principle differs from the traditional passive anti-loosening approach that relies solely on friction; instead, it achieves active self-locking through its unique wedge-shaped toothed surface mechanical structure.

After the bolts are fully tightened, the washers generate stable pre‑tension to firmly fasten the connected components. When equipment operation induces vibration and shock and the bolts tend to rotate loose, the inner wedge‑shaped inclined surfaces of the two washers undergo slight relative slippage. The angular difference of the inclined surfaces creates reverse axial tension, which automatically compensates for bolt pre‑tension and counteracts the loosening torque caused by vibration. The stronger the vibration, the more secure the locking force of the washers, fundamentally eliminating bolt loosening. Meanwhile, the radial tooth faces on the outer sides of the washers bite deeply into the workpiece surface to effectively prevent the washers from slipping or shifting on their own. This dual‑protection design keeps the fastening assembly in a consistently stable tightened state, making it perfectly suitable for various complex and harsh industrial working conditions.

Compared with traditional anti‑loosening processes, double‑stack self‑locking washers boast remarkably outstanding overall performance advantages. Common spring washers available on the market deliver clamping force merely through their own elastic deformation. Under long‑term vibration, they are prone to elastic fatigue, fracture and failure, and their anti‑loosening performance keeps deteriorating as equipment operating time increases. Though thread‑locking adhesives can improve anti‑loosening effects, they impose high requirements on construction procedures: precise adhesive application and standing for curing are required, resulting in low assembly efficiency. In addition, they cannot withstand high temperatures and oil contamination, are extremely difficult to disassemble and maintain in later stages, and cannot be reused. In contrast, double‑stack self‑locking washers are made of high‑strength alloy steel and subjected to quenching, tempering and surface anti‑corrosion treatments. Featuring high structural strength and good toughness, they are free from risks of elastic fatigue. Adopting purely mechanical physical anti‑loosening principles, their performance will not be affected by environmental factors such as high temperature, low temperature, oil contamination, dust and humidity.

Furthermore, this gasket is easy to install and does not require any auxiliary consumables or modifications to the existing bolted assembly; it is compatible with conventional installation tools, enabling quick installation and removal, and can be reused, thereby significantly reducing corporate parts replacement and maintenance costs. Additionally, it delivers excellent preload maintenance performance and exhibits minimal axial force decay under dynamic loads, ensuring long-term maintenance of equipment connection accuracy and effectively reducing the frequency of equipment downtime due to failures. Suitable for special installation scenarios—including high-altitude, outdoor, or enclosed environments where maintenance is challenging—this gasket serves as a core component for reducing costs, improving efficiency, and enhancing the safety factor of industrial equipment.

It is noteworthy that the anti-loosening performance, service life, and compatibility of double-layer self-locking washers are highly dependent on the quality of raw materials, machining precision, and surface treatment processes. Low-end, substandard washers available on the market often suffer from issues such as rough tooth surface machining, deviations in wedge angle, non-compliant material hardness, and poor corrosion resistance; these defects not only prevent effective self-locking but also cause wear on the workpiece contact surfaces, leading to failure, rusting, or deformation after short-term use – thereby creating potential safety hazards. Therefore, selecting a reliable supplier is crucial for ensuring the stable operation of machinery during industrial procurement and application. Xintegu is a reliable, professional, and trustworthy fastener supplier that offers one-stop solutions. With years of expertise in the fastener industry, the company specializes in the research, development, manufacturing, and supporting services for a wide range of high-quality anti-loosening fasteners.

Relying on mature production processes and a strict quality‑control system, the double‑stack self‑locking washers produced by Xintegu are manufactured in strict accordance with industry standards. Multiple tests have been conducted on material hardness, tooth‑surface precision, wedge angle and anti‑corrosion performance. Featuring complete product specifications, stable performance and wide adaptability, the products can perfectly meet the working‑condition requirements of various industries including wind power, rail transit and mining machinery. Meanwhile, the brand abandons the single‑supply mode and provides customers with one‑stop services covering working‑condition analysis, product selection, custom processing and installation guidance. For special working conditions such as high temperature, intense vibration and heavy corrosion, it accurately matches corresponding materials, specifications and surface‑treatment processes, thoroughly solving customers' fastener anti‑loosening problems and delivering all‑round guarantees for the safe and stable operation of various industrial equipment.

As industrial equipment is upgraded toward higher precision, higher load capacity and longer service life, the requirements for the stability, durability and adaptability of fastener anti‑loosening performance keep rising. As an efficient, long‑lasting and low‑cost mechanical anti‑loosening solution, double‑stack self‑locking washers have become the preferred standardized component for industrial assembly. High‑quality anti‑loosening fasteners can not only improve the operational stability of equipment, but also help enterprises cut maintenance costs, avoid safety risks and boost production efficiency.

If you encounter issues such as loose bolts, difficulties in component selection, or inadequate suitability for specific operating conditions during equipment assembly or maintenance, and would like to request customized double-layer self-locking gaskets or a tailored anti-loosening solution, please feel free to contact us at any time. Leveraging our professional technical expertise, reliable product quality, and comprehensive one-stop service, we will work closely with your specific equipment operating conditions, load requirements, and environmental factors to provide precise component selection and customized solutions – helping your enterprise ensure the long-term, safe, and stable operation of your equipment.
