Cross‑recess external hexagon triple‑combination screw: an industrial fastening option balancing efficiency and reliability

In modern industrial manufacturing, fasteners may appear small, yet they directly determine the assembly quality, operational stability, and service life of entire systems. Whether it's a piece of mechanical equipment, a sheet metal cabinet, or an automated rack – with thousands of connection points involved – the performance, precision, and ease of installation of every single screw impact the overall quality of the product. The cross-ribbed hexagon triple-combination screw is a widely used composite fastener in the industrial sector. Thanks to its unique head design and integrated combination structure, it addresses numerous challenges associated with the separation of traditional bolts and washers, and is extensively employed across various industries, including mechanical equipment, electrical cabinets, sheet metal fabrication, and new energy applications.

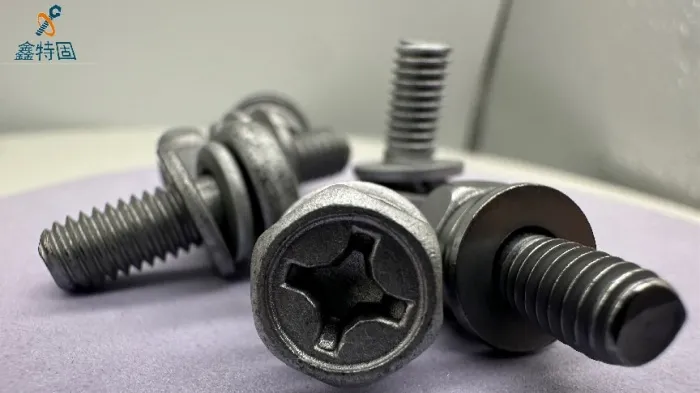

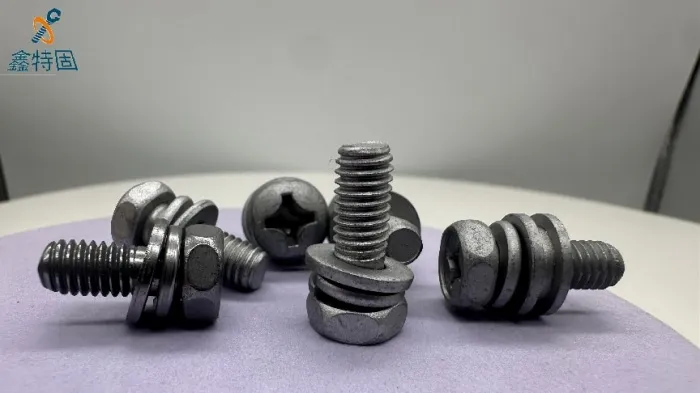

The Cross-Notch Hexagon Triple-Component Screw, conforming to the GB/T 9074.13 standard, integrates a notch-equipped hexagon bolt body, a spring washer, and a flat washer into a single pre-assembled unit. The washers remain securely in place upon leaving the factory, eliminating the need for manual assembly on-site; it is a standardized triple-component fastening product. Its head features both an external hexagon profile and a cross-shaped notch – a core distinguishing feature that sets it apart from conventional external hexagon combination screws and flat-head cross combination screws. Conventional flat-head cross screws are designed solely for screwdriver operation and have limited torque capacity; under high-torque applications, they are susceptible to thread damage due to slippage within the groove. In contrast, the Cross-Notch Hexagon Triple-Component Screw incorporates a dual-drive mechanism: it can be used with a cross-head screwdriver for rapid pre-assembly or fine-tuning of tightening, or it can be driven with a wrench or socket to apply high torque for secure locking. This design balances assembly efficiency with high-torque locking capability, making it compatible with a wide range of tools and diverse field application scenarios.

From the perspective of structural functions, the three components of the complete screw set perform their respective roles and cooperate with one another to achieve stable connections. As the main load‑bearing part, the bolt body bears tensile and shear loads. The flat washer enlarges the contact area and distributes clamping pressure, preventing damage to sheet‑metal and painted workpiece surfaces during tightening, as well as workpiece deformation caused by local stress concentration. Relying on its own elastic deformation, the spring washer continuously provides pre‑tightening force under working conditions of equipment vibration, impact and alternating temperature changes. It effectively inhibits screw loosening and reduces the risk of connection failure. Pre‑assembled as an integrated unit, this product changes the traditional procurement mode of separately picking bolts, flat washers and spring washers. Only one part needs to be taken for fastening during assembly, which greatly reduces on‑site sorting and assembly procedures, improves assembly‑line operational efficiency, and avoids quality hazards resulting from lost, mis‑installed or omitted washers. For mass‑production manufacturing enterprises, it can effectively lower the rate of assembly errors.

The Cross-Notch Hexagon Triple-Combination Screw offers a wide range of material and performance grade options. Standard carbon steel grades provide strength levels of 4.8 or 8.8; 8.8-grade products undergo heat treatment and hydrogen removal processes, resulting in higher tensile strength, making them ideal for heavy-duty applications. Stainless steel offers exceptional corrosion resistance and is commonly used in humid environments, outdoor equipment, or mildly corrosive conditions. Surface treatments include environmentally friendly blue-white zinc plating, colored zinc plating, blackening, and dakro coating – allowing users to select the appropriate surface treatment based on their operating environment to further enhance rust and corrosion resistance and extend the product's service life. The screw sizes range from  M three to M fourteen across a broad length spectrum, ensuring compatibility for both thin-sheet metal connections and the assembly of medium-strength structural components. Thread precision strictly adheres to Chinese national standard requirements, ensuring excellent interchangeability and facilitating easy maintenance, disassembly, and reassembly of equipment.

Compared with other types of combination screws available on the market, this product has well‑defined application boundaries. The pan‑head cross‑recess triple‑combination screw features a low‑profile and aesthetically pleasing head. It is mostly used for appearance‑related components of home appliances and chassis, yet delivers relatively low torque resistance. Frequent assembly and disassembly under high torque will easily cause wear and thread stripping of the cross recess. Conventional external hexagon combination screws have no internal cross recess, making screwdriver operations impossible in confined spaces. The cross‑recess external hexagon triple‑combination screw perfectly fills the gap for intermediate‑use scenarios: it can withstand high tightening torque and offers excellent anti‑vibration and anti‑loosening performance, while retaining the cross recess for fast and easy assembly. It is suitable for mechanical equipment parts, power distribution cabinets and control cabinets, sheet‑metal frames, automation equipment, agricultural machinery components, some new‑energy supporting components and other applications. It is especially ideal for internal structural connections of equipment under working conditions that require a balance between assembly speed and clamping strength, as well as frequent inspection, disassembly and reassembly in later‑stage operations.

Of course, even the best fasteners cannot deliver their full performance without proper selection and reliable supply‑chain support. Many enterprises frequently encounter various challenges in fastener procurement: no stock available for specifications matching drawings; special working conditions requiring specific materials and special surface treatments; difficulty balancing small‑batch sample testing and large‑volume supply; multiple types of fasteners needed for different projects, which means dealing with numerous suppliers, resulting in high communication costs and poor delivery‑cycle control; quality issues such as dimensional deviations, defective plating and washer detachment upon delivery, which directly delay production schedules. At the selection stage, many engineers also face confusion over what strength grades and washer configurations should be adopted for different vibration environments and sheet‑metal thicknesses, and it is hard to make optimal judgments relying solely on product manuals.

At this point, selecting a professional and reliable fastener supplier becomes particularly critical. Xintegu is a dependable, professional and trustworthy fastener supplier that offers one‑stop solutions. It not only provides off‑the‑shelf cross‑recessed hexagon triple‑combination screws of standard types, but also delivers custom services including specification adjustment, material replacement and special surface treatment in accordance with customers’ drawings and working‑condition requirements. Meanwhile, it supplies a full range of other fasteners such as bolts, screws, washers and nuts, helping enterprises streamline their procurement processes and eliminating the need for multi‑sourcing and price comparison. Covering preliminary technical selection advice, sample prototyping, mass production, quality inspection, on‑schedule delivery and after‑sales technical support, its complete service chain helps manufacturing enterprises avoid various risks arising from fastener selection, procurement and application. This allows engineers to devote more energy to the R&D and design of products themselves instead of expending effort on fastener‑related material coordination.

In the actual project implementation process, many customers tend to overlook certain details. For instance, high‑strength carbon‑steel screws require hydrogen‑removal treatment after electroplating to avoid the risk of hydrogen‑embrittlement fracture. For working conditions with intense vibration, in addition to relying on spring lock washers for anti‑loosening purposes, other locking solutions may be considered based on condition assessments. For thin‑plate workpieces, attention should be paid to matching the outer diameter of washers to prevent plate crushing. Professional suppliers will provide practical recommendations based on real‑world service environments instead of merely delivering products strictly according to drawings. Even for standard parts, significant differences in finished‑product quality can arise from variations in production processes and raw‑material control across different manufacturers. Invisible details such as thread tolerances, the fastening strength of washer assemblies, the depth of cross recesses on screw heads, and heat‑treatment quality are precisely what determine long‑term operational reliability.

As China's manufacturing sector continues to upgrade, enterprises' understanding of fasteners has evolved beyond the simple notion that "just being able to tighten them is sufficient"; instead, they place greater emphasis on the overall value of fasteners – including reliable quality, controllable lead times, flexible customization capabilities, and comprehensive technical support. The cross-ribbed external hexagon three-piece screw, featuring a dual-drive head and an integrated three-piece structure, seamlessly combines ease of assembly with connection reliability, making it an indispensable component in industrial fastening systems. From the sheet metal assembly of a single electrical control cabinet to the assembly of entire mechanical equipment racks, this small screw quietly ensures the long-term stable operation of the entire system.

Whether you are selecting cross-ribbed hexagonally shaped three-piece screw assemblies, or have specific requirements such as in-stock fastener procurement, sample production, custom non-standard solutions, or suitability assessment for specific operating conditions, please feel free to contact us at any time. Based on your actual operating conditions, technical drawings, and procurement volume, we can provide professional product selection advice and comprehensive fastening solutions to facilitate the efficient implementation of your project.
