Butterfly Screw

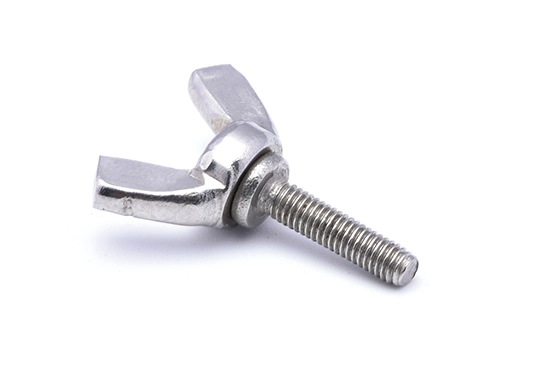

A butterfly screw, also known as a wing screw or thumb screw, is a type of fastener that features two large, wing-like projections on its head, allowing for easy manual turning without the need for tools. This design facilitates quick and frequent adjustments, making butterfly screws particularly useful in applications where components need to be assembled or adjusted often and easily.

Butterfly Screw Key Features


  • Ease of Use: The prominent wings provide a secure grip for tightening or loosening the screw by hand, ideal for quick changes or adjustments.

  • Material: Typically made from metals like stainless steel, brass, or plastic, depending on the required strength and resistance to corrosion.

  • Design Variability: Butterfly screws come in various sizes and thread patterns to suit different materials and thicknesses.


Specifications of Butterfly Screw

Thread size

d

PPitch
d2Maximum
Minimum
d3Maximum
Minimum
eMaximum
Minimum
gMaximum
Minimum
GMaximum
Minimum
hMaximum
Minimum
mMaximum
Minimum
aMaximum
r1
r2
r3
r4

①, Material: a) Forgeable

cast iron GT: GTS or GTW

is determined by the

manufacturer;

b) Steel St: Forging or

cold working is determined

by the manufacturer;

c) Copper-zinc alloy CuZn:

Forgeable alloy or cast

alloy is determined by the

manufacturer;

d) Austenitic stainless steel

A: Grade is determined by

the manufacturer


M4M5M6M8M10M12M16M20M24
0.70.811.251.51.7522.53
81113162023293544
6810131720263241
791112.516.519.5232937.5
5.57.5910.514.517.5212735
2026333951657390110
1824303648627086106
1.92.32.32.84.44.96.46.99.4
1.11.51.523.64.15.66.18.6
2.32.83.34.45.46.47.5810.5
1.72.32.73.64.65.66.579.5
10.51317202533.537.546.556.5
8.51115182331354453.5
4.66.58101214172125
3.2456.5810131620
2.12.4344.55.367.59
3456810111418
////111.21.62.5
0.51111.21.21.622.5
22.53356789
