Long Injection‑Molded Knurled Nut: The Core Insert for Stable Connection of Plastic Structures

Against the backdrop of the rapid development of modern manufacturing toward lightweighting and integration, plastic materials, boasting advantages such as controllable costs, flexible forming and light weight, are widely used in numerous sectors including consumer electronics, home appliances, new‑energy industries, automotive interiors and intelligent equipment. Nevertheless, plastics have limited inherent strength. Tapping threads directly into plastic substrates will readily lead to thread stripping, thread cracking and connection failure after repeated assembly and disassembly, vibration and stress loading, which severely undermines the overall product quality and service life. As a dedicated pre‑embedded metal insert for plastic components, the long knurled injection‑molded nut effectively addresses the industry‑wide pain points of threaded connections in plastics. It combines the high strength of metal threads with the lightweight merits of plastic structural parts, and has become an indispensable precision fastener in the structural design of plastic products.

Long knurled insert nuts for injection molding belong to a sub‑category of injection‑molded pre‑embedded inserts. Compared with conventional short‑type knurled nuts, they feature a longer effective embedding length. Their outer circles are knurled with straight patterns, oblique patterns or diamond mesh patterns, and standard precision internal threads are machined inside. They are mainly embedded into plastic substrates via in‑mold injection pre‑embedding, hot pressing and thermal fusion, ultrasonic pressing and other methods. After curing, they bond firmly with plastics to provide stable and reliable metal thread connection points for plastic components. Ordinary short‑type knurled nuts are suitable for working conditions with thin‑walled plastics and low stress. By contrast, long knurled insert nuts for injection molding achieve higher anti‑rotation torque and axial pull‑out force thanks to their larger engagement contact area. They fit product structures with thicker wall sections, higher loads and complex vibration environments, and serve as the preferred solution for heavy‑duty plastic assembly scenarios.

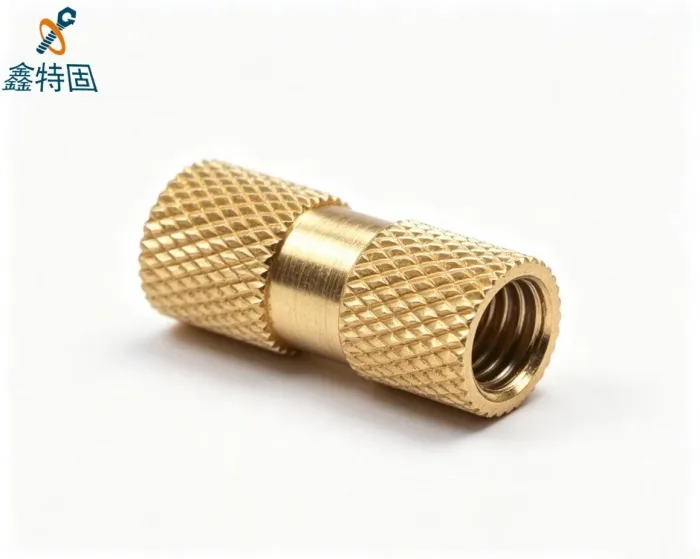

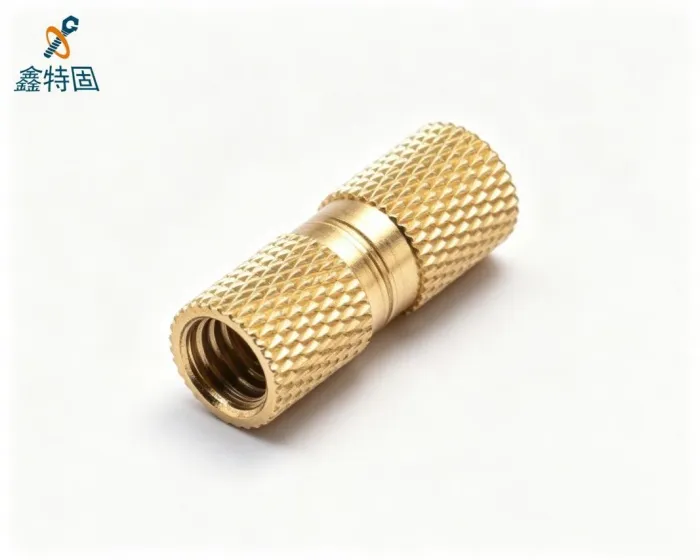

From the perspective of product structure, every design feature of long‑type injection‑molded knurled nuts is geared toward connection reliability. The knurled texture on the outer wall is not merely decorative; it is critical for achieving physical locking. Diamond‑pattern knurling delivers both torque‑resistance and pull‑out resistance, making it suitable for working conditions with frequent vibration. Diagonal knurling provides a certain guiding effect during embedding, lowering the risk of plastic cracking. Straight knurling boasts outstanding anti‑rotation performance and is mostly applied in static‑load scenarios. The extended body length expands the contact and engagement area between the nut and plastic. Molten plastic can fully fill the gaps within the knurling grooves. After the plastic cools and solidifies, the grooves grip the base material firmly, greatly reducing the risk of nut failure caused by rotation or pull‑out. The internal threads are precision‑tapped with full, regular thread profiles and tightly controlled tolerances. They mate smoothly with standard screws, support repeated assembly and disassembly, and are less prone to thread stripping. Certain models feature chamfered ends, which facilitate placement and positioning within molds, reduce plastic chipping during hot‑press installation, and improve product yield.

Material selection directly determines the overall performance of long injection‑molded knurled nuts. The mainstream materials available on the market fall into two categories: brass and stainless steel. Brass (H59, H62, C3604) is the most widely‑used material. It features excellent thermal conductivity, making it highly suitable for hot‑melt and ultrasonic pressing processes. It also boasts good machinability, high dimensional accuracy, corrosion resistance and outstanding cost‑performance. Brass long injection‑molded knurled nuts are the preferred choice for most consumer electronics, home appliances and general plastic products. Stainless steel delivers higher strength, superior corrosion resistance and heat resistance, and is suitable for outdoor equipment, new‑energy components, certain medical devices and humid and corrosive environments. Nevertheless, stainless steel has poorer thermal conductivity than brass, so process parameters need to be adjusted for hot‑melt pressing, and it comes with relatively higher costs. For a small number of lightweight‑demand scenarios, custom‑made aluminum alloy nuts can also be adopted for low‑torque assembly.

Long injection-molded knurled nuts offer multiple significant advantages over conventional short inserts. First, they possess superior mechanical properties: the greater embedment depth provides a larger contact area, significantly enhancing tensile and torsional resistance; thus, they maintain stable connections even under impact, continuous vibration, or repeated disassembly, reducing post-production failures. Second, they are suitable for complex operating conditions: when plastic components have sufficient wall thickness and the structure must withstand high loads, short nuts are prone to pull-out or rotational failure; in contrast, long injection-molded knurled nuts effectively mitigate such quality risks. Third, they are compatible with a variety of manufacturing processes: they can be directly placed in the mold for integrated injection molding alongside the product, making them ideal for large-scale automated production; alternatively, they support subsequent processes such as hot-melt pressing or ultrasonic insertion, making them suitable for small-batch manufacturing or secondary assembly workflows, allowing for flexible adaptation to different manufacturing environments across various factories. Fourth, they are available in a wide range of dimensions and specifications – extended customization is available for mainstream thread sizes ranging from M2 to M10, and various structural options—including through-holes, blind holes, and grooves—are available to meet diverse product design requirements. Fifth, they help reduce overall production costs: the use of long injection-molded knurled nuts minimizes the risk of thread damage or component scrapping in plastic parts, improves the overall product yield rate, ensures high stability during subsequent maintenance and disassembly operations, and extends the overall service life of the product.

The comprehensive range of product advantages has enabled long-shot injection-molded knurled nuts to be widely adopted across numerous industries. In the consumer electronics sector – including large smart device housings, energy storage unit enclosures, and plastic enclosures for industrial control equipment – where housing walls feature thick walls and connection points endure high loads – extended-length knurled nuts are extensively used to ensure secure housing assembly. In the home appliance industry – particularly for internal plastic structural components in air conditioners, washing machines, and kitchen appliances that operate under continuous vibration – these nuts help prevent screws from loosening or detaching over prolonged use. In the new energy sector – such as energy storage module housings, plastic accessories for charging stations, and plastic brackets for battery packs – where high requirements are placed on connection reliability and temperature resistance, these long-shot injection-molded knurled nuts effectively withstand the vibration and temperature fluctuations encountered during equipment operation. For automotive interior components – including various plastic decorative housings and in-vehicle functional modules – which are subjected to continuous vehicle vibration, these nuts meet stringent demands for torsional and tensile strength, effectively mitigating the risks of nut loosening or detachment. Furthermore, long-shot injection-molded knurled nuts are also utilized in applications such as smart security devices, medical device accessories, large-scale plastic furniture components, and industrial instrument housings.

To fully leverage the performance of long-molded knurled nuts, proper selection of the nut type and correct installation are equally critical. Designers should consider factors such as the plastic material, plastic wall thickness, actual torque and pulling forces when determining the nut's length, outer diameter, knurling pattern, and material. The shrinkage behavior of plastics must be taken into account; crystalline plastics, for example, exhibit a higher shrinkage rate and require a corresponding knurling design. For brittle plastics, excessively deep knurling should be avoided to prevent cracking. During in-mold injection molding, accurate nut positioning is essential to prevent displacement during the molding process and avoid the plastic material being forced into the threads. For hot-molded insertion processes, temperature, pressure, and insertion speed must be carefully controlled; excessively high temperatures can cause plastic to melt and overflow, while insufficient temperatures may result in inadequate insertion of the insert, both of which can pose quality risks. Many manufacturing companies encounter requirements such as non-standard wall thicknesses, special loads, or unique operating environments in actual projects where standard specifications cannot fully align with product design requirements; in such cases, professional fastener suppliers can provide technical support to facilitate customized development.

Xintegu is a reliable, professional, and trustworthy fastener supplier offering comprehensive one-stop solutions. For plastic embedded components such as long-injection-molded knurled nuts, Xintegu provides both standard, stock-available products and customized solutions tailored to customers 'drawings, samples, and operational requirements. The company offers end-to-end support – spanning material selection, knurling structure optimization, and dimensional parameter confirmation, through sample fabrication, mass production, and process recommendations – helping manufacturing enterprises overcome challenges such as difficult plastic component selection, inconsistent quality, and unpredictable delivery timelines. Xintegu's solutions cater to both large-scale production needs across various industries and small-batch R&D and prototyping requirements, ensuring that fasteners seamlessly align with product design objectives.

Nowadays, competition in the product market is growing increasingly fierce. The quality of components directly determines the reputation of end‑products. Small long injection‑molded knurled nuts, though seemingly insignificant, are directly related to the structural safety of complete machines. Many product failures such as loosening, housing cracking and assembly‑disassembly malfunctions can often be traced back to improper selection of inserts or sub‑standard component quality. Proper fastener selection and supply‑chain control constitute an indispensable part of product R&D and production.

If you are engaged in product structural design, screening long‑type injection‑molded knurled nuts, or encountering insert failure, model‑selection confusion or non‑standard customization requirements, please feel free to contact us. Based on your plastic material, product working conditions and assembly processes, we can provide professional model‑selection advice, sample support and complete fastening solutions to help your products improve assembly reliability and avoid structural failures. Customers are welcome to consult and communicate for more technical documents and quotation information.
